Product features
- 12 μm uncooled VOx detector
- White-hot, Highlight, and Outline image modes
- Manual or automatic display control
- Analog PAL, RS232, and external-power interfaces
01 / 10
COTI-29A Night-Vision Thermal Fusion Attachment
Adds thermal cues to compatible night-vision systems for lightweight, head-mounted fused observation.
Designed for night patrol, target search, and situational awareness, with 384×288 or 640×512 detector configurations and dual-power or external-power options.
- Configurations starting at 78 g
- Fusion use with head-mounted night-vision systems
- -40°C to +60°C operating range
- IP67 protection
Mission stageInformation Fusion
CapabilityMultispectral Sensing
ScenarioHeadborne Carry
IndustrySpecial Tactics
Product systemMultispectral Systems
Applications
- Night patrol and search
- Thermal target cueing for head-mounted night-vision systems
- Outline enhancement in complex backgrounds
- Emergency search, rescue, and security observation
Technical specifications
Values are preserved from the source product material. Missing fields are not inferred.
Detector typeUncooled VOx
Pixel pitch12 μm
Configuration 1384×288 / 20° field of view / dual power
Configuration 2384×288 / 20° field of view / external power
Configuration 3640×512 / 30.5° field of view / dual power
Configuration 4640×512 / 30.5° field of view / external power
Display controlManual / automatic
Image modesWhite-hot / Highlight / Outline
Compatible cells17335 / 18650
Weight78 g / 110 g (configuration dependent)
InterfacesExternal power / analog PAL / RS232
Operating temperature-40°C to +60°C
Ingress protectionIP67
Related products
Related through a shared mission stage, capability, or scenario.
WBC / 1500

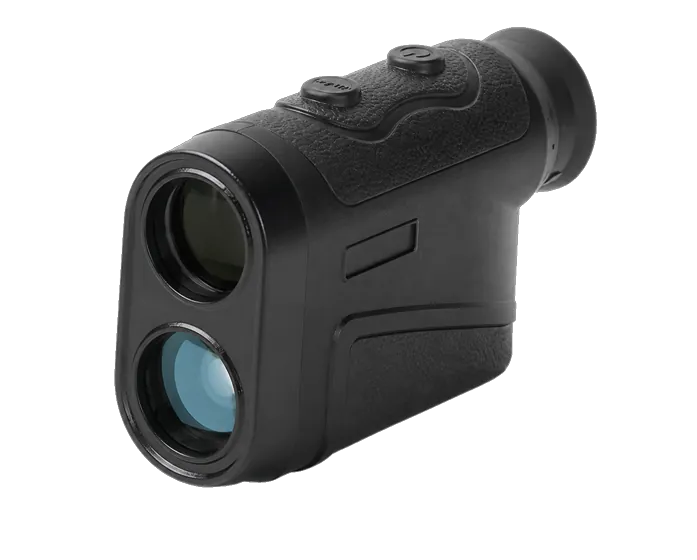

1500 Laser Rangefinder Monocular
An eye-safe laser rangefinder monocular combining 3.5-1500 m ranging, 5-300 km/h speed measurement, and 8× observation.
View full profile
WBC / AL-R225 / AL-K325

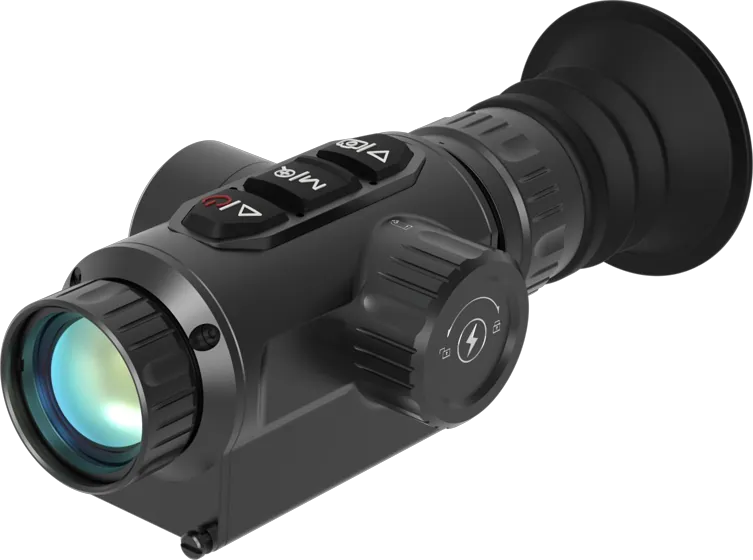

AL-R225 / AL-K325 Ares Lite Series 4-in-1 Thermal Imager
A lightweight 4-in-1 thermal platform that switches among headborne, sight, handheld, and clip-on roles.
View full profile
WBC / A325 / A625

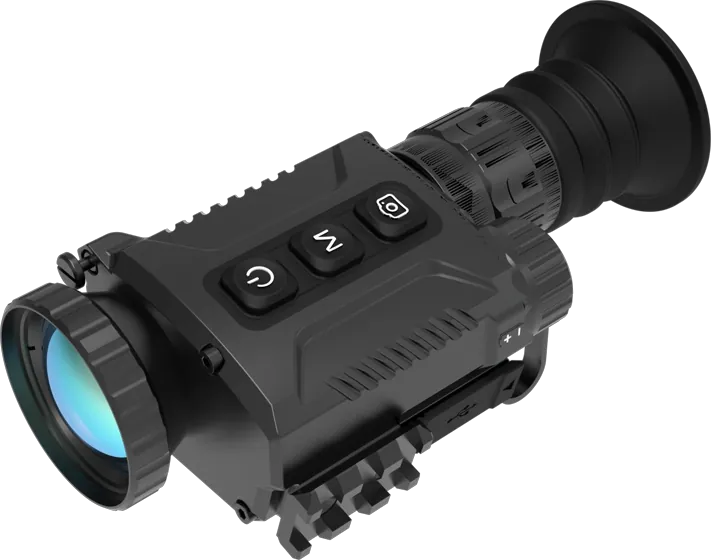

A325 / A625 Ares Series 4-in-1 Thermal Imager
